Plastic molds are at the heart of virtually every product that involves plastic components. From sleek electronic casings to everyday items like bottles, toys, and even festive items like plastic mold Christmas decorations, these tools make it possible to mass-produce complex shapes with high precision. But how do you make a plastic mold? What materials are involved? Which types of molds are best for your needs?
In this guide, we’ll walk you through the entire process of how to make plastic molds, including the different types, materials, design considerations, manufacturing techniques, and polishing methods. Whether you’re a business looking to invest in plastic molding manufacturing or a hobbyist interested in a soft plastic mold kit, this guide covers everything you need to know.
Plastic molds are hollow forms used to shape molten or softened plastic into finished products. These molds are typically made of steel or aluminum and can be custom-designed for creating everything from industrial components to consumer goods. The process of using these molds, known as plastic molding manufacturing, allows for consistent, scalable, and cost-efficient production.
With advancements in plastic mold technology, manufacturers can now produce plastic mold parts with extremely tight tolerances, high aesthetic quality, and excellent durability. Choosing the right type of mold and understanding the production process is key to ensuring your final product meets expectations.
Plastic molds can be categorized based on the molding technique used and the type of product being made. Let’s explore the primary types of plastic molds and their applications.

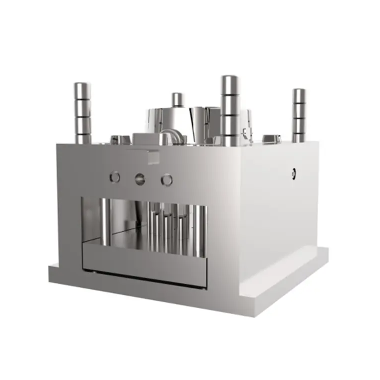

Injection molds are the most popular and widely used in plastic manufacturing. In this process, molten plastic is injected into a tightly clamped mold cavity using a plastic mold machine. After cooling, the mold opens, and the solidified part is ejected.
Injection molds are ideal for producing plastic molds and plastic parts that require high precision, such as electronic housings, automotive dashboards, and medical devices. A plastic mold manufacturer like Hago Mould, known for its high-quality injection mold solutions, offers custom mold services across various industries.
Compression molds use pressure and heat to shape plastic. A pre-measured amount of plastic is placed inside the mold cavity, and the mold is closed and heated until the plastic takes shape.
This method is commonly used for automotive parts, electrical insulators, and other large, durable plastic components. It's a cost-effective way to produce high-strength parts with minimal waste.
Extrusion molding is used when long, consistent profiles are needed, such as pipes, tubing, or window frames. In this method, plastic is pushed through a shaped die.
While extrusion molds aren't suitable for complex shapes, they are perfect for creating continuous plastic mold parts that require uniform cross-sections.
Blow molding is used to manufacture hollow plastic items, such as bottles and containers. The process involves inflating a heated plastic tube inside a mold until it conforms to the shape of the cavity.
This method is particularly important in packaging and beverage industries, where lightweight, hollow objects are needed in large volumes.
Blister molding, also known as vacuum forming, involves heating a plastic sheet until it becomes pliable, then forming it over a mold using vacuum pressure.
This technique is commonly used for creating packaging trays, clamshells, and clear covers. A soft plastic mold kit can be used for small-scale blister molding at home or in prototyping environments.
This process uses pre-expanded polystyrene beads that are fused inside a mold using steam. It’s commonly used for protective packaging, insulation panels, and lightweight transport containers.
Designing a plastic mold is a critical step that directly impacts production efficiency, product quality, and cost. Here are some essential elements to consider when planning your mold design.
When you create a plastic mold, the following design factors must be carefully evaluated:
Cavity layout and number of cavities
Ejection mechanisms for part removal
Cooling systems for temperature control
Gating systems for plastic flow
Venting to release trapped air
These elements must work in harmony to ensure that the mold lasts through thousands of cycles and produces consistently high-quality parts.
Plastic molds rely on several accessories that contribute to their functionality and durability. Common accessories include:
Ejector pins
Guide pillars
Sprue bushings
Locating rings
Cooling connectors
These parts are essential whether you're making a universal plastic mold for multiple applications or a custom plastic mold for a specific product.
A plastic mold has several moving and stationary parts, each serving a specific function.
Mold base: Supports the entire structure and holds the core and cavity.
Core and cavity: Shape the final product.
Sliders and lifters: Allow for undercuts and complex geometries.
Ejector system: Pushes the finished product out of the mold.
Some of the most commonly used mold base parts include:
| Part | Function |
|---|---|
| Guide Pins | Ensure accurate alignment of mold halves |
| Return Pins | Reset the ejector system after each cycle |
| Sprue Bushing | Directs molten plastic into the mold cavity |
| Clamping Plate | Secures the mold to the molding machine |
These parts are particularly important in high-volume production and help reduce the overall cost of a plastic mold by minimizing downtime and maintenance.
Choosing the right material is essential for mold longevity, ease of manufacturing, and product quality.
Surface hardness to handle wear and tear
Good machinability for quick and precise shaping
Polishing capability for smooth part surfaces
Thermal resistance to withstand high processing temperatures
Corrosion of cavity surfaces
Warping or deformation under stress
Cracking or chipping during operation
To avoid these issues, working with an experienced plastic mold maker can help ensure the right material is selected.
Mold steel should meet the following conditions:
High heat resistance to maintain dimensional stability
Excellent wear resistance for extended tool life
Good cutting properties for efficient machining
Corrosion resistance for longevity, especially with PVC
Modern manufacturing has introduced improved steel types for different mold-making needs:
Carburized Steel: Offers a hard surface with a tough core
Pre-Hardened Steel: Ready-to-machine without heat treatment
Age-Hardened Steel: Provides excellent polishability
Corrosion-Resistant Steel: Ideal for moist or chemically aggressive environments
These materials are widely used by plastic mold manufacturers like Hago Mould, known for high-performance molds across various industries.
Plastic molds are used to produce a wide range of products, from industrial components to consumer goods.
Plastic mold parts can vary from simple trays to complex engine covers. Designs are tailored to the product’s end-use, durability requirements, and aesthetic needs.
Runner systems are used to channel molten plastic into the mold cavity. There are two primary systems: cold runners and hot runners.
| System Type | Advantages | Shortcomings |
|---|---|---|
| Cold Runner | Simple design, lower mold cost | More waste, slower cycle times |
| Hot Runner | Faster cycles, minimal material waste | Higher upfront cost, complex setup |
Selecting the right runner system depends on production volume and budget constraints.
Modern mold design relies heavily on CAD and simulation software. Common tools include:
SolidWorks
AutoCAD
Siemens NX
Moldflow (for flow analysis)
These tools help plastic mold manufacturers optimize designs for better performance and reduced production costs.
Polishing increases mold life and improves the surface quality of plastic parts. It’s especially important for products requiring a glossy or transparent finish.
Rough polishing to remove machining marks
Semi-finishing to smooth out surfaces
Fine polishing to prepare for final finish
Mirror finishing for high-gloss requirements
Polishing is essential for injection mold tools used in cosmetic, optical, and transparent product manufacturing.
Several techniques are used to polish molds, depending on the complexity and finish required:
Mechanical Polishing: Using abrasive tools
Chemical Polishing: Involves chemical reactions to smooth the surface
Electrolytic Polishing: Uses electric currents
Ultrasonic Polishing: Ideal for complex cavities
Fluid Polishing: Abrasive particles in a liquid medium
Magnetic Polishing: Great for hard-to-reach areas
Each method offers unique advantages and is chosen based on the mold’s material and end-use.
Q1: Is it mould or mold plastic?
A1: Both terms refer to the same thing. "Mould" is British English, while "mold" is American English. In manufacturing, both are used interchangeably to describe tools used in plastic molding.
Q2: Can I mold my own plastic parts?
A2: Yes, you can use a soft plastic mold kit or 3D-printed molds to create plastic parts at home. However, for complex or high-volume production, a plastic mold machine is recommended.
Q3: What is plastic moulding called?
A3: It’s called plastic molding manufacturing, which includes methods like injection molding, compression molding, blow molding, and extrusion.
Q4: How can I mold plastic?
A4: You heat plastic until it becomes pliable or molten, then press or inject it into a mold. Once it cools, the plastic takes the shape of the mold cavity.
Q5: How do you make a plastic mold?
A5: Start with a CAD design, machine the mold cavity and core from steel or aluminum, install cooling and ejection systems, and finish with polishing. Then test the mold using a plastic mold machine.
Q6: How to make a hard plastic mold?
A6: Use tool-grade steel such as H13 or P20, machine it to precision, heat-treat it for hardness, then polish the mold for a smooth finish. These molds are ideal for high-volume production.
Q7: Does plastic mold?
A7: In manufacturing, "plastic mold" refers to the tool. However, some types of plastic can develop mold (fungus) if stored in moist environments for extended periods.
Knowing how to make a plastic mold is essential for anyone involved in product development or manufacturing. From selecting the right mold type and material to understanding polishing techniques and flow systems, each step plays a vital role in the final product's quality and cost.
For businesses seeking high-quality solutions, Hago Mould offers a wide range of plastic molds, including injection molds, blow molds, and custom plastic mold tools. Their expertise in plastic mold technology ensures that every mold is built to perform and last.Whether you’re aiming to manufacture industrial components, consumer goods, or even decorative items like plastic mold Christmas decorations, mastering the mold-making process will give you a competitive edge in today’s market.
